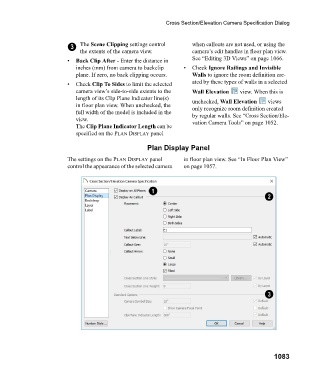

Cross Section/Elevation Camera Specification Dialog

3 The Scene Clipping settings control when callouts are not used, or using the
the extents of the camera view. camera’s edit handles in floor plan view.
• Back Clip After - Enter the distance in See “Editing 3D Views” on page 1066.
inches (mm) from camera to backclip • C h e c k Ignore Railings and Invisible
plane. If zero, no back clipping occurs. Walls to ignore the room definition cre-
• Check Clip To Sides to limit the selected ated by these types of walls in a selected
camera view’s side-to-side extents to the Wall Elevation view. When this is
length of its Clip Plane Indicator line(s) unchecked, Wall Elevation v i e w s
in floor plan view. When unchecked, the only recognize room definition created
full width of the model is included in the by regular walls. See “Cross Section/Ele-
view. vation Camera Tools” on page 1052.
The Clip Plane Indicator Length can be
specified on the PLAN DISPLAY panel

Plan Display Panel
The settings on the PLAN DISPLAY panel in floor plan view. See “In Floor Plan View”
control the appearance of the selected camera on page 1057.

1083
