Chief Architect X10 Reference Manual

• Check Show Camera Focal Point to dis- • Check Show Field of View Indicators to
play the camera’s focal point in floor plan display the camera’s field of view indica-
view. When unchecked, the camera’s line tors in floor plan view.
of sight and focal point are hidden until • You can also change the FOV Indicator
the camera is selected. Length, which is measured in plan
inches (mm).

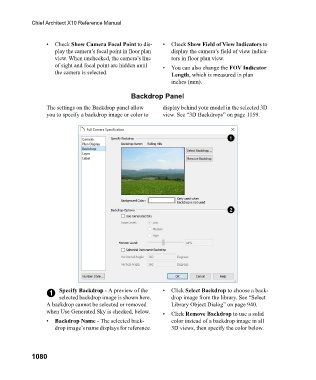

Backdrop Panel
The settings on the Backdrop panel allow display behind your model in the selected 3D
you to specify a backdrop image or color to view. See “3D Backdrops” on page 1159.

1 Specify Backdrop - A preview of the • Click Select Backdrop to choose a back-
selected backdrop image is shown here. drop image from the library. See “Select
A backdrop cannot be selected or removed Library Object Dialog” on page 940.
when Use Generated Sky is checked, below. • Click Remove Backdrop to use a solid
• Backdrop Name - The selected back- color instead of a backdrop image in all
drop image’s name displays for reference. 3D views, then specify the color below.

1080
