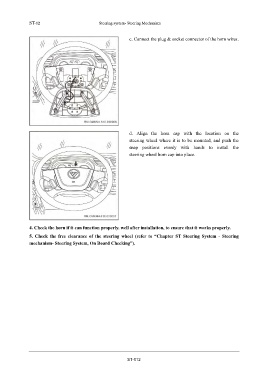

Page 1080 - Foton Workshop Manual - Auman EST-M

ST-12 Steering system- Steering Mechanism

c. Connect the plug & socket connector of the horn wires.

d. Align the horn cap with the location on the
steering wheel where it is to be mounted, and push the
snap positions evenly with hands to install the
steering wheel horn cap into place.

4. Check the horn if it can function properly. well after installation, to ensure that it works properly.
5. Check the free clearance of the steering wheel (refer to “Chapter ST Steering System - Steering
mechanism- Steering System, On Board Checking”).

ST-012
