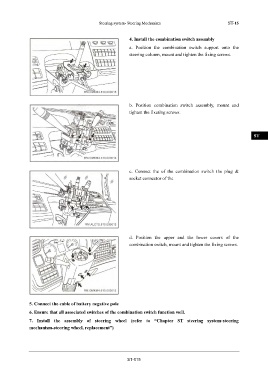

Page 1083 - Foton Workshop Manual - Auman EST-M

Steering system- Steering Mechanism ST-15

IN
4. Install the combination switch assembly

a. Position the combination switch support onto the
DI
steering column, mount and tighten the fixing screws.

EG

TR

AX
b. Position combination switch assembly, mount and

tighten the fixating screws.
FR

ST

BR

BW
c. Connect the of the combination switch the plug &

socket connector of the
EL

d. Position the upper and the lower covers of the
combination switch, mount and tighten the fixing screws.

5. Connect the cable of battery negative pole

6. Ensure that all associated switches of the combination switch function well.
7. Install the assembly of steering wheel (refer to “Chapter ST steering system-steering
mechanism-steering wheel, replacement”)

ST-015
