ST-14 Steering system- Steering Mechanism

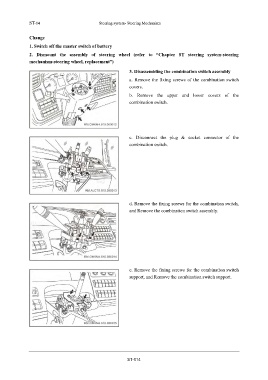

Change
1. Switch off the master switch of battery
2. Dismount the assembly of steering wheel (refer to “Chapter ST steering system-steering
mechanism-steering wheel, replacement”)

3. Disassembling the combination switch assembly

a. Remove the fixing screws of the combination switch
covers.
b. Remove the upper and lower covers of the
combination switch.

c. Disconnect the plug & socket connector of the
combination switch.

d. Remove the fixing screws for the combination switch,
and Remove the combination switch assembly.

e. Remove the fixing screws for the combination switch
support, and Remove the combination switch support.

ST-014
