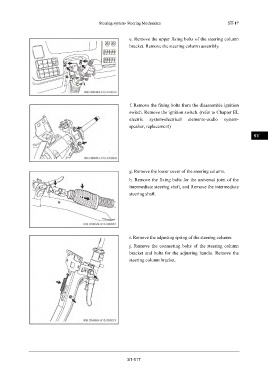

Steering system- Steering Mechanism ST-17

IN
e. Remove the upper fixing bolts of the steering column
bracket. Remove the steering column assembly.
DI

EG

TR

AX
f. Remove the fixing bolts from the disassemble ignition
switch. Remove the ignition switch. (refer to Chapter EL
electric system-electrical elements–audio system- FR
speaker, replacement)

ST

BR

BW
g. Remove the lower cover of the steering column.
h. Remove the fixing bolts for the universal joint of the
intermediate steering shaft, and Remove the intermediate EL
steering shaft.

i. Remove the adjusting spring of the steering column.

j. Remove the connecting bolts of the steering column
bracket and bolts for the adjusting handle. Remove the
steering column bracket.

ST-017
