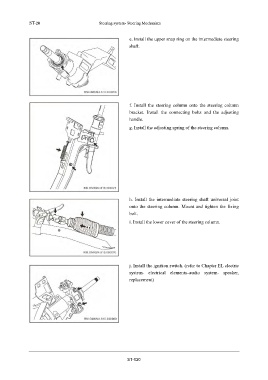

Page 1088 - Foton Workshop Manual - Auman EST-M

ST-20 Steering system- Steering Mechanism

e. Install the upper snap ring on the intermediate steering
shaft.

f. Install the steering column onto the steering column
bracket. Install the connecting bolts and the adjusting
handle.

g. Install the adjusting spring of the steering column.

h. Install the intermediate steering shaft universal joint
onto the steering column. Mount and tighten the fixing
bolt.
i. Install the lower cover of the steering column.

j. Install the ignition switch. (refer to Chapter EL electric
system- electrical elements–audio system- speaker,
replacement)

ST-020
