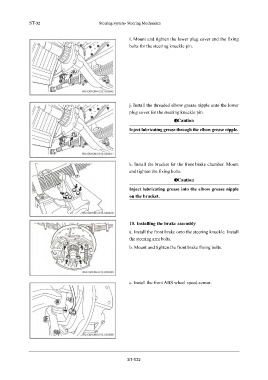

ST-32 Steering system- Steering Mechanism

i. Mount and tighten the lower plug cover and the fixing
bolts for the steering knuckle pin.

j. Install the threaded elbow grease nipple onto the lower
plug cover for the steering knuckle pin.
Caution

Inject lubricating grease through the elbow grease nipple.

k. Install the bracket for the front brake chamber. Mount
and tighten the fixing bolts.
Caution
Inject lubricating grease into the elbow grease nipple
on the bracket.

10. Installing the brake assembly

a. Install the front brake onto the steering knuckle. Install
the steering arm bolts.
b. Mount and tighten the front brake fixing bolts.

c. Install the front ABS wheel speed sensor.

ST-032
