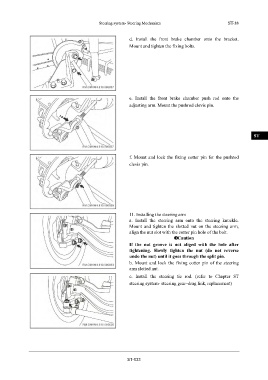

Page 1101 - Foton Workshop Manual - Auman EST-M

Steering system- Steering Mechanism ST-33

IN
d. Install the front brake chamber onto the bracket.

Mount and tighten the fixing bolts.
DI

EG

TR

e. Install the front brake chamber push rod onto the
AX
adjusting arm. Mount the pushrod clevis pin.

FR

ST

BR
f. Mount and lock the fixing cotter pin for the pushrod

clevis pin.
BW

EL

11. Installing the steering arm
a. Install the steering arm onto the steering knuckle.
Mount and tighten the slotted nut on the steering arm,
align the nut slot with the cotter pin hole of the bolt.
Caution
If the nut groove is not aliged with the hole after
tightening. Slowly tighten the nut (do not reverse
undo the nut) until it goes through the split pin.

b. Mount and lock the fixing cotter pin of the steering
arm slotted nut.
c. Install the steering tie rod. (refer to Chapter ST
steering system- steering gear–drag link, replacement)

ST-033
