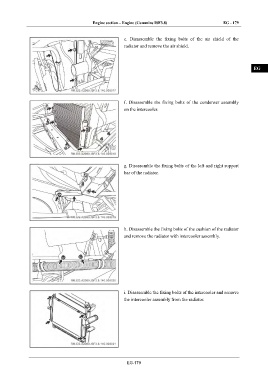

Engine section – Engine (Cummins ISF3.8) EG - 179
IN
e. Disassemble the fixing bolts of the air shield of the
radiator and remove the air shield.
DI
EG
TR
f. Disassemble the fixing bolts of the condenser assembly AX
on the intercooler.
FR
ST
BR
g. Disassemble the fixing bolts of the left and right support
BW
bar of the radiator.
EL
h. Disassemble the fixing bolts of the cushion of the radiator
and remove the radiator with intercooler assembly.
i. Disassemble the fixing bolts of the intercooler and remove
the intercooler assembly from the radiator.
EG-179
