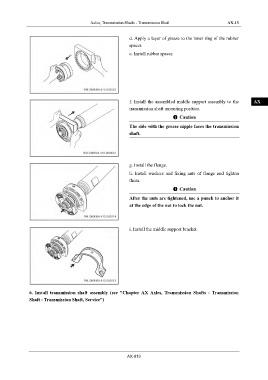

Axles, Transmission Shafts - Transmission Shaft AX-13

IN
d. Apply a layer of grease to the inner ring of the rubber

spacer.
DI
e. Install rubber spacer.

EG

TR

f. Install the assembled middle support assembly to the AX
transmission shaft mounting position.
Caution FR
The side with the grease nipple faces the transmission
shaft. ST

BR

g. Install the flange.
BW
h. Install washers and fixing nuts of flange and tighten

them.
EL
Caution

After the nuts are tightened, use a punch to anchor it

at the edge of the nut to lock the nut.

i. Install the middle support bracket.

6. Install transmission shaft assembly (see "Chapter AX Axles, Transmission Shafts - Transmission
Shaft - Transmission Shaft, Service")

AX-013
