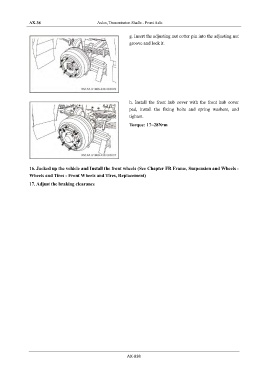

Page 950 - Foton Workshop Manual - Auman EST-M

AX-38 Axles, Transmission Shafts - Front Axle

g. Insert the adjusting nut cotter pin into the adjusting nut
groove and lock it.

h. Install the front hub cover with the front hub cover
pad, install the fixing bolts and spring washers, and
tighten.
Torque: 17~28N•m

16. Jacked up the vehicle and Install the front wheels (See Chapter FR Frame, Suspension and Wheels -
Wheels and Tires - Front Wheels and Tires, Replacement)
17. Adjust the braking clearance

AX-038
