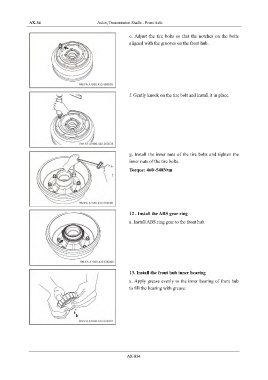

AX-34 Axles, Transmission Shafts - Front Axle

e. Adjust the tire bolts so that the notches on the bolts
aligned with the grooves on the front hub.

f. Gently knock on the tire bolt and install it in place.

g. Install the inner nuts of the tire bolts and tighten the
inner nuts of the tire bolts.
Torque: 460~540N•m

12 . Install the ABS gear ring

a. Install ABS ring gear to the front hub.

13. Install the front hub inner bearing

a. Apply grease evenly to the inner bearing of front hub
to fill the bearing with grease.

AX-034
