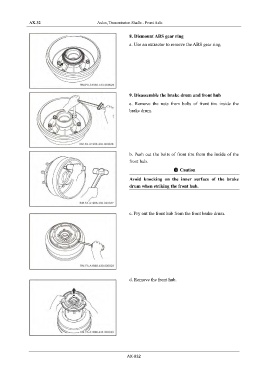

Page 944 - Foton Workshop Manual - Auman EST-M

AX-32 Axles, Transmission Shafts - Front Axle

8. Dismount ABS gear ring

a. Use an extractor to remove the ABS gear ring.

9. Disassemble the brake drum and front hub

a. Remove the nuts from bolts of front tire inside the
brake drum.

b. Push out the bolts of front tire from the inside of the
front hub.
Caution

Avoid knocking on the inner surface of the brake
drum when striking the front hub.

c. Pry out the front hub from the front brake drum.

d. Remove the front hub.

AX-032
