Axles, Transmission Shafts - Front Axle AX-35

IN

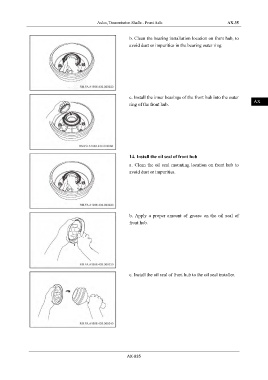

b. Clean the bearing installation location on front hub, to

avoid dust or impurities in the bearing outer ring.
DI

EG

TR

c. Install the inner bearings of the front hub into the outer
AX
ring of the front hub.

FR

ST

BR
14. Install the oil seal of front hub

a. Clean the oil seal mounting location on front hub to
BW
avoid dust or impurities.

EL

b. Apply a proper amount of grease on the oil seal of

front hub.

c. Install the oil seal of front hub to the oil seal installer.

AX-035
