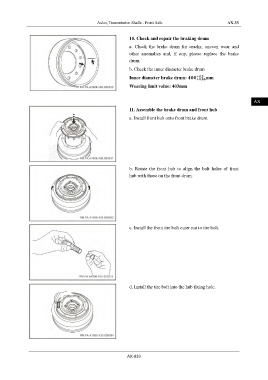

10. Check and repair the braking drum

a. Check the brake drum for cracks, uneven wear and
DI
other anomalies and, if any, please replace the brake

drum.
b. Check the inner diameter brake drum EG
Inner diameter brake drum: . mm
.
Wearing limit value: 403mm TR

AX
11. Assemble the brake drum and front hub

a. Install front hub onto front brake drum. FR

ST

BR

b. Rotate the front hub to align the bolt holes of front BW
hub with those on the front drum.

EL

c. Install the front tire bolt outer nut to tire bolt.

d. Install the tire bolt into the hub fixing hole.

AX-033
