AX-36 Axles, Transmission Shafts - Front Axle

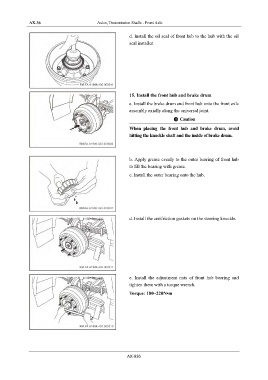

d. Install the oil seal of front hub to the hub with the oil
seal installer.

15. Install the front hub and brake drum

a. Install the brake drum and front hub onto the front axle
assembly axially along the universal joint.
Caution

When placing the front hub and brake drum, avoid
hitting the knuckle shaft and the inside of brake drum.

b. Apply grease evenly to the outer bearing of front hub
to fill the bearing with grease.
c. Install the outer bearing onto the hub.

d. Install the antifriction gaskets on the steering knuckle.

e. Install the adjustment nuts of front hub bearing and
tighten them with a torque wrench.
Torque: 180~220N•m

AX-036
