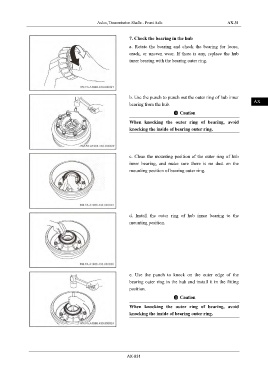

Axles, Transmission Shafts - Front Axle AX-31
IN
7. Check the bearing in the hub
a. Rotate the bearing and check the bearing for loose,
DI
crack, or uneven wear. If there is any, replace the hub
inner bearing with the bearing outer ring.
EG
TR
b. Use the punch to punch out the outer ring of hub inner
AX
bearing from the hub.
Caution
FR
When knocking the outer ring of bearing, avoid
knocking the inside of bearing outer ring.
ST
BR
c. Clean the mounting position of the outer ring of hub
inner bearing, and make sure there is no dust on the
BW
mounting position of bearing outer ring.
EL
d. Install the outer ring of hub inner bearing to the
mounting position.
e. Use the punch to knock on the outer edge of the
bearing outer ring in the hub and install it in the fitting
position.
Caution
When knocking the outer ring of bearing, avoid
knocking the inside of bearing outer ring.
AX-031
