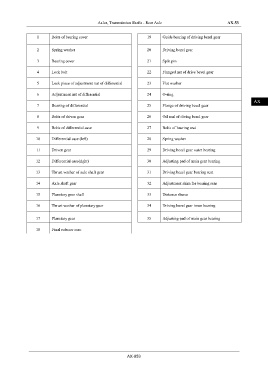

Axles, Transmission Shafts - Rear Axle AX-53

IN
1 Bolts of bearing cover 19 Guide bearing of driving bezel gear

2 Spring washer 20 Driving bezel gear DI

3 Bearing cover 21 Split pin
EG
4 Lock bolt 22 Flanged nut of drive bevel gear

5 Lock piece of adjustment nut of differential 23 Flat washer TR

6 Adjustment nut of differential 24 O-ring
AX
7 Bearing of differential 25 Flange of driving bezel gear

8 Bolts of driven gear 26 Oil seal of diving bezel gear
FR

9 Bolts of differential case 27 Bolts of bearing seat
ST

10 Differential case (left) 28 Spring washer

11 Driven gear 29 Driving bezel gear outer bearing
BR

12 Differential case(right) 30 Adjusting pad of main gear bearing
BW

13 Thrust washer of axle shaft gear 31 Driving bezel gear bearing seat

14 Axle shaft gear 32 Adjustment shim for bearing sear
EL
15 Planetary gear shaft 33 Distance sleeve

16 Thrust washer of planetary gear 34 Driving bezel gear inner bearing

17 Planetary gear 35 Adjusting pad of main gear bearing

18 Final reducer case

AX-053
