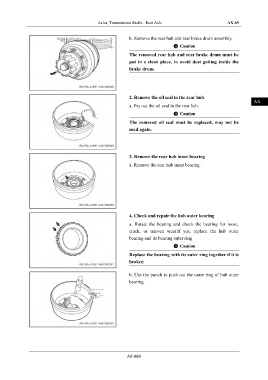

Page 981 - Foton Workshop Manual - Auman EST-M

Axles, Transmission Shafts - Rear Axle AX-69

IN
h. Remove the rear hub and rear brake drum assembly.
Caution
DI
The removed rear hub and rear brake drum must be
put in a clean place, to avoid dust getting inside the
brake drum. EG

TR

2. Remove the oil seal in the rear hub
AX
a. Pry out the oil seal in the rear hub.

Caution
FR
The removed oil seal must be replaced, may not be
used again.
ST

BR
3. Remove the rear hub inner bearing

a. Remove the rear hub inner bearing.
BW

EL

4. Check and repair the hub outer bearing

a. Rotate the bearing and check the bearing for loose,

crack, or uneven wear.If yes, replace the hub outer

bearing and its bearing outer ring
Caution

Replace the bearing with its outer ring together if it is

broken

b. Use the punch to push out the outer ring of hub outer
bearing.

AX-069
