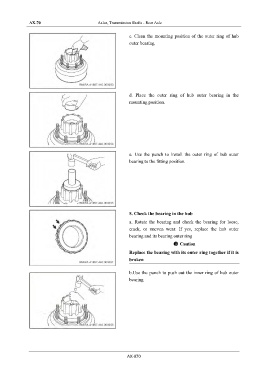

Page 982 - Foton Workshop Manual - Auman EST-M

AX-70 Axles, Transmission Shafts - Rear Axle

c. Clean the mounting position of the outer ring of hub
outer bearing.

d. Place the outer ring of hub outer bearing in the
mounting position.

e. Use the punch to install the outer ring of hub outer
bearing to the fitting position.

5. Check the bearing in the hub

a. Rotate the bearing and check the bearing for loose,
crack, or uneven wear. If yes, replace the hub outer
bearing and its bearing outer ring
Caution
Replace the bearing with its outer ring together if it is
broken

b.Use the punch to push out the inner ring of hub outer
bearing.

AX-070
