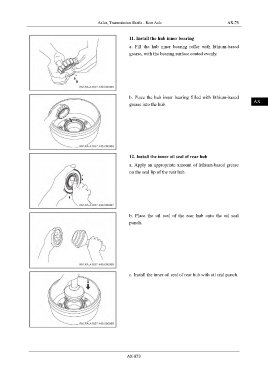

Page 985 - Foton Workshop Manual - Auman EST-M

Axles, Transmission Shafts - Rear Axle AX-73

IN
11. Install the hub inner bearing

a. Fill the hub inner bearing roller with lithium-based
DI
grease, with the bearing surface coated evenly.

EG

TR

b. Place the hub inner bearing filled with lithium-based
AX
grease into the hub.

FR

ST

BR
12. Install the inner oil seal of rear hub

a. Apply an appropriate amount of lithium-based grease
BW
on the seal lip of the rear hub.

EL

b. Place the oil seal of the rear hub onto the oil seal

punch.

c. Install the inner oil seal of rear hub with oil seal punch.

AX-073
