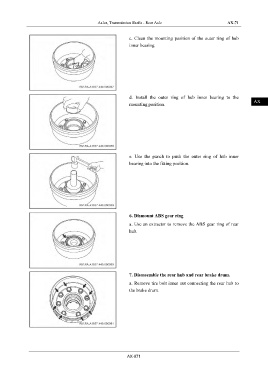

Axles, Transmission Shafts - Rear Axle AX-71
IN
c. Clean the mounting position of the outer ring of hub
inner bearing.
DI
EG
TR
d. Install the outer ring of hub inner bearing to the
AX
mounting position.
FR
ST
BR
e. Use the punch to push the outer ring of hub inner
bearing into the fitting position.
BW
EL
6. Dismount ABS gear ring
a. Use an extractor to remove the ABS gear ring of rear
hub.
7. Disassemble the rear hub and rear brake drum.
a. Remove tire bolt inner nut connecting the rear hub to
the brake drum.
AX-071
