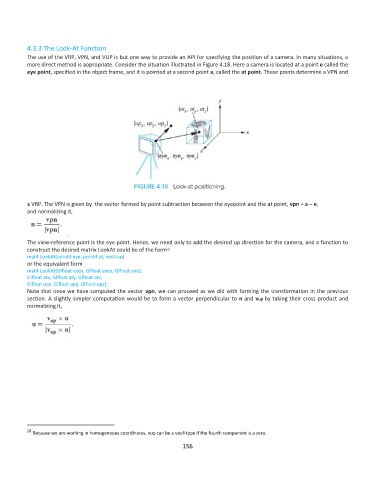

4.3.3 The Look-At Function
The use of the VRP, VPN, and VUP is but one way to provide an API for specifying the position of a camera. In many situations, a
more direct method is appropriate. Consider the situation illustrated in Figure 4.18. Here a camera is located at a point e called the
eye point, specified in the object frame, and it is pointed at a second point a, called the at point. These points determine a VPN and

a VRP. The VPN is given by the vector formed by point subtraction between the eyepoint and the at point, vpn = a – e,
and normalizing it,

.
The view-reference point is the eye point. Hence, we need only to add the desired up direction for the camera, and a function to
28
construct the desired matrix LookAt could be of the form
mat4 LookAt(point4 eye, point4 at, vec4 up)
or the equivalent form
mat4 LookAt(Glfloat eyex, Glfloat eyey, Glfloat eyez,
Glfloat atx, Glfloat aty, Glfloat atz,
Glfloat upx, Glfloat upy, Glfloat upz);
Note that once we have computed the vector vpn, we can proceed as we did with forming the transformation in the previous
section. A slightly simpler computation would be to form a vector perpendicular to n and vup by taking their cross product and
normalizing it,

28 Because we are working in homogeneous coordinates, vup can be a vec4 type if the fourth component is a zero.
