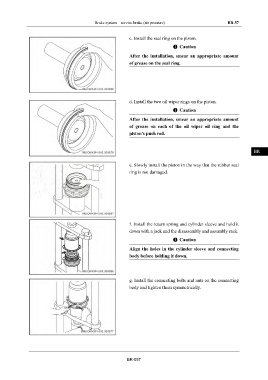

Brake system – service brake (air pressure) BR-57

IN
c. Install the seal ring on the piston.

Caution
DI
After the installation, smear an appropriate amount
of grease on the seal ring.
EG

TR

d. Install the two oil wiper rings on the piston. AX
Caution
After the installation, smear an appropriate amount FR
of grease on each of the oil wiper oil ring and the
piston's push rod. ST

BR

e. Slowly install the piston in the way that the rubber seal
BW
ring is not damaged.

EL

f. Install the return spring and cylinder sleeve and hold it

down with a jack and the disassembly and assembly rack.

Caution

Align the holes in the cylinder sleeve and connecting
body before holding it down.

g. Install the connecting bolts and nuts on the connecting

body and tighten them symmetrically.

BR-057
