Page 1190 - Foton Workshop Manual - Auman EST-M

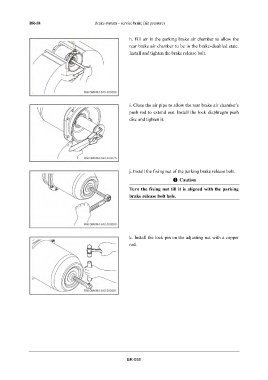

BR-58 Brake system – service brake (air pressure)

h. Fill air in the parking brake air chamber to allow the
rear brake air chamber to be in the brake-disabled state.
Install and tighten the brake release bolt.

i. Close the air pipe to allow the rear brake air chamber's
push rod to extend out. Install the lock diaphragm push
disc and tighten it.

j. Install the fixing nut of the parking brake release bolt.
Caution
Turn the fixing nut till it is aligned with the parking
brake release bolt hole.

k. Install the lock pin on the adjusting nut with a copper
rod.

BR-058
