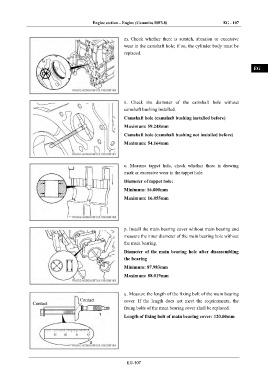

Engine section – Engine (Cummins ISF3.8) EG - 107

IN

m. Check whether there is scratch, abrasion or excessive

wear in the camshaft hole; if so, the cylinder body must be
DI
replaced.

EG

TR

n. Check the diameter of the camshaft hole without AX
camshaft bushing installed.
Camshaft hole (camshaft bushing installed before) FR
Maximum: 59.248mm
Camshaft hole (camshaft bushing not installed before) ST

Maximum: 54.164mm

BR

o. Measure tappet hole, check whether there is drawing
BW
mark or excessive wear in the tappet hole.

Diameter of tappet hole:
EL
Minimum: 16.000mm

Maximum: 16.055mm

p. Install the main bearing cover without main bearing and
measure the inner diameter of the main bearing hole without
the main bearing.
Diameter of the main bearing hole after disassembling
the bearing
Minimum: 87.983mm
Maximum: 88.019mm

q. Measure the length of the fixing bolt of the main bearing
Contact cover. If the length does not meet the requirements, the
Contact
fixing bolts of the main bearing cover shall be replaced.
Length of fixing bolt of main bearing cover: 120.00mm
