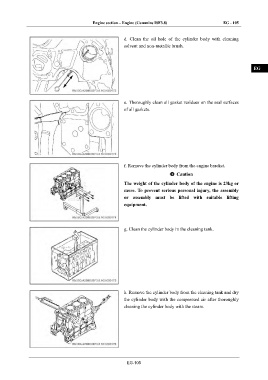

Engine section – Engine (Cummins ISF3.8) EG - 105

IN

d. Clean the oil hole of the cylinder body with cleaning

solvent and non-metallic brush.
DI

EG

TR

e. Thoroughly clean all gasket residues on the seal surfaces AX
of all gaskets.
FR

ST

BR

f. Remove the cylinder body from the engine bracket.
BW
Caution

The weight of the cylinder body of the engine is 23kg or EL
more. To prevent serious personal injury, the assembly

or assembly must be lifted with suitable lifting
equipment.

g. Clean the cylinder body in the cleaning tank.

h. Remove the cylinder body from the cleaning tank and dry
the cylinder body with the compressed air after thoroughly

cleaning the cylinder body with the steam.
