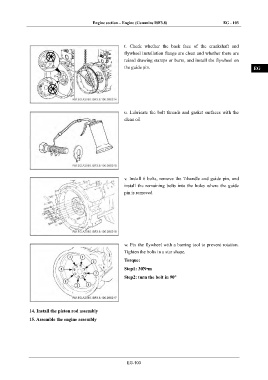

Engine section – Engine (Cummins ISF3.8) EG - 103

IN

t. Check whether the back face of the crankshaft and
DI
flywheel installation flange are clean and whether there are
raised drawing stamps or burrs, and install the flywheel on
the guide pin. EG

TR

AX

u. Lubricate the bolt threads and gasket surfaces with the
clean oil FR

ST

BR

BW

v. Install 6 bolts, remove the T-handle and guide pin, and
install the remaining bolts into the holes where the guide EL
pin is removed.

w. Fix the flywheel with a barring tool to prevent rotation.
Tighten the bolts in a star shape.
Torque:
Step1: 30N•m

Step2: turn the bolt in 90°

14. Install the piston rod assembly

15. Assemble the engine assembly
