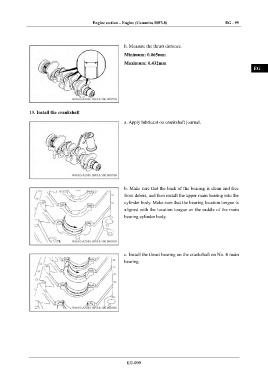

Engine section – Engine (Cummins ISF3.8) EG - 99
IN
h. Measure the thrust distance.
DI
Minimum: 0.065mm
Maximum: 0.432mm
EG
TR
AX
13. Install the crankshaft
FR
a. Apply lubricant on crankshaft journal.
ST
BR
BW
EL
b. Make sure that the back of the bearing is clean and free
from debris, and then install the upper main bearing into the
cylinder body. Make sure that the bearing location tongue is
aligned with the location tongue on the saddle of the main
bearing cylinder body.
c. Install the thrust bearing on the crankshaft on No. 4 main
bearing.
EG-099
