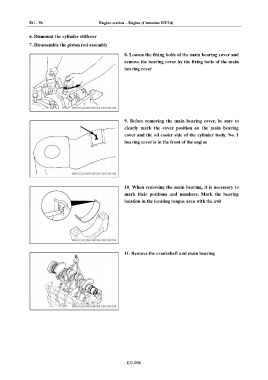

EG - 96 Engine section – Engine (Cummins ISF3.8)

6. Dismount the cylinder stiffener

7. Disassemble the piston rod assembly
8. Loosen the fixing bolts of the main bearing cover and
remove the bearing cover by the fixing bolts of the main
bearing cover

9. Before removing the main bearing cover, be sure to
clearly mark the cover position on the main bearing
cover and the oil cooler side of the cylinder body. No. 1
bearing cover is in the front of the engine

10. When removing the main bearing, it is necessary to
mark their positions and numbers. Mark the bearing
location in the locating tongue area with the awl

11. Remove the crankshaft and main bearing

EG-096
