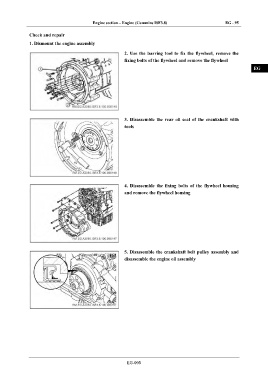

Engine section – Engine (Cummins ISF3.8) EG - 95

Check and repair IN
1. Dismount the engine assembly

2. Use the barring tool to fix the flywheel, remove the DI
fixing bolts of the flywheel and remove the flywheel
EG

TR

AX

3. Disassemble the rear oil seal of the crankshaft with FR
tools
ST

BR

BW

4. Disassemble the fixing bolts of the flywheel housing EL
and remove the flywheel housing

5. Disassemble the crankshaft belt pulley assembly and
disassemble the engine oil assembly

EG-095
