Axles, Transmission Shafts - Rear Axle AX-61
IN

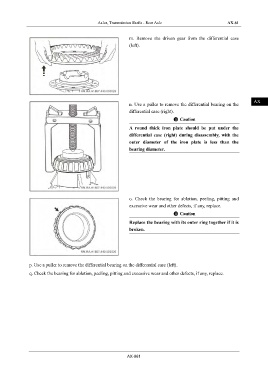

m. Remove the driven gear from the differential case
(left).
DI
EG
TR
AX
n. Use a puller to remove the differential bearing on the
differential case (right).
Caution FR
A round thick iron plate should be put under the
differential case (right) during disassembly, with the ST
outer diameter of the iron plate is less than the
bearing diameter.
BR
BW
EL
o. Check the bearing for ablation, peeling, pitting and
excessive wear and other defects, if any, replace.
Caution
Replace the bearing with its outer ring together if it is
broken.
p. Use a puller to remove the differential bearing on the differential case (left).
q. Check the bearing for ablation, peeling, pitting and excessive wear and other defects, if any, replace.
