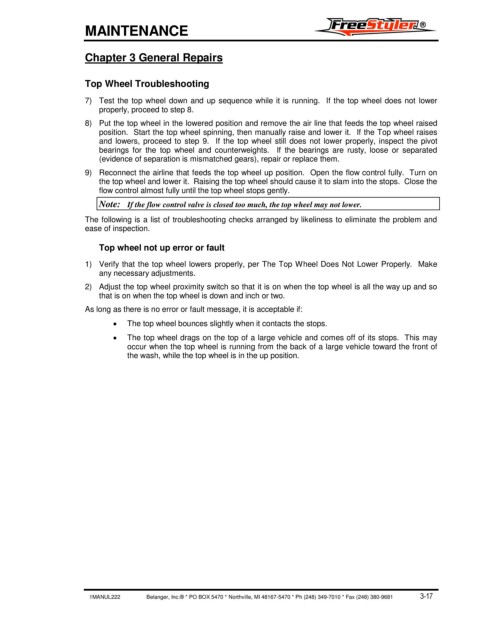

Page 81 - FreeStyler® Maintenance Manual
P. 81

®
                       MAINTENANCE


                       Chapter 3 General Repairs


                       Top Wheel Troubleshooting

                       7)  Test the top wheel down and up sequence while it is running.  If the top wheel does not lower
                          properly, proceed to step 8.
                       8)  Put the top wheel in the lowered position and remove the air line that feeds the top wheel raised
                          position.  Start the top wheel spinning, then manually raise and lower it.  If the Top wheel raises
                          and lowers, proceed to step 9.  If the top wheel still does not lower properly,  inspect the pivot
                          bearings  for  the  top  wheel  and  counterweights.    If  the  bearings  are  rusty,  loose  or  separated
                          (evidence of separation is mismatched gears), repair or replace them.
                       9)  Reconnect the airline that feeds the top wheel up position.  Open the flow control fully.  Turn on
                          the top wheel and lower it.  Raising the top wheel should cause it to slam into the stops.  Close the
                          flow control almost fully until the top wheel stops gently.
                          Note:  If the flow control valve is closed too much, the top wheel may not lower.
                       The following is a list of troubleshooting checks arranged by likeliness to eliminate the problem and
                       ease of inspection.

                          Top wheel not up error or fault
                       1)  Verify that the top wheel lowers properly, per The Top Wheel Does Not Lower Properly.  Make
                          any necessary adjustments.
                       2)  Adjust the top wheel proximity switch so that it is on when the top wheel is all the way up and so
                          that is on when the top wheel is down and inch or two.

                       As long as there is no error or fault message, it is acceptable if:
                                 The top wheel bounces slightly when it contacts the stops.
                                 The top wheel drags on the top of a large vehicle and comes off of its stops.  This may
                                 occur when the top wheel is running from the back of a large vehicle toward the front of
                                 the wash, while the top wheel is in the up position.



































                        1MANUL222               Belanger, Inc.® * PO BOX 5470 * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681                  3-17
